High-Level Overview​

This section outlines the prerequisites, design considerations, and data flow for effectively integrating the transaction screening API. Developers should carefully review these details to ensure seamless implementation.

Prerequisites​

To integrate with the transaction screening API, the following prerequisites must be in place:

  1. Authentication:

    • Each API call must include an API key in the headers for authentication. Ensure the API key is securely stored and managed.
    • Authentication for outgoing webhook responses will require additional verification mechanisms to confirm that responses originate from our system.

  2. Initial Request and Acknowledgment:

    • Upon submitting a transaction for screening, the API will immediately respond with an acknowledgment confirming receipt of the request.
    • This acknowledgment allows you to track the status of the request while processing continues in the background.

  3. Standard HTTP Call Design:

    • All interactions with the API follow a standard HTTP request-response pattern.
    • The baseURL for all API endpoints is: https://api.exoai.tech/
    • Ensure that your system supports HTTPS to maintain data security during communication.

  4. Webhook Setup:

    • A webhook endpoint must be configured by your system administrator to receive screening results.
    • The webhook ensures asynchronous delivery of detailed screening results once processing is complete.
    • To validate webhook authenticity, the response payload includes a digital signature. Developers should implement a verification process on their webhook endpoint to confirm this signature.

  5. Webhook Configuration Guidelines:

    • The webhook endpoint must be capable of:
      • Handling incoming POST requests with JSON payloads.
      • Verifying the webhook signature using the shared secret or key.
      • Logging and retrying failed deliveries based on the status code provided.

  6. System Readiness:

    • Ensure your system can parse and process the response format, which includes details such as matched rules, blacklist findings, and risk scores.

Data Flow​

Below is a high-level flow of how data moves through the transaction screening process:

  1. Submit Transaction: A financial transaction is submitted to the API along with the required authentication details.
  2. Acknowledgment: The API responds with an acknowledgment, confirming receipt of the transaction.
  3. Processing:
    • Concurrent checks are performed for client-specific rules, blacklist status, and AI-based risk scoring.
    • The results are compiled into a structured response.
  4. Webhook Response:
    • The screening results are sent asynchronously to the configured webhook endpoint.
    • Developers must verify the authenticity of the webhook response and handle the results appropriately.

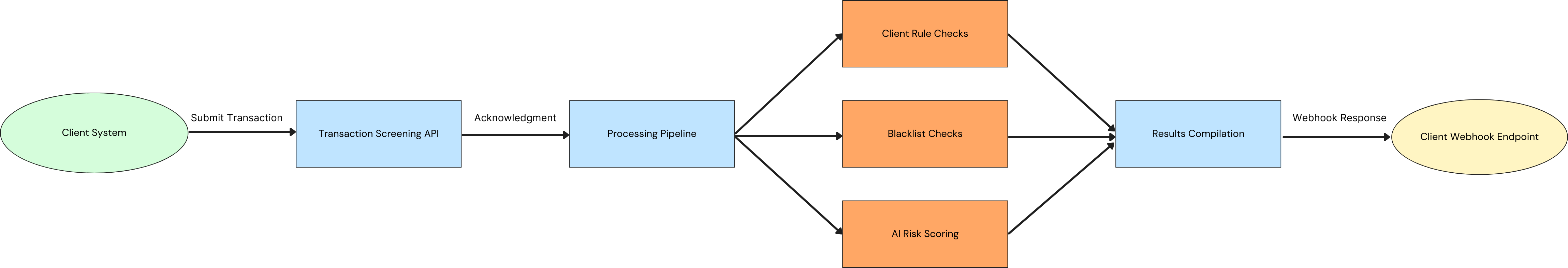

Flow Diagram​

The following diagram provides a visual representation of the transaction screening data flow:

Example banner

This high-level overview provides developers with the foundational details needed to integrate with the transaction screening API. Further sections will delve into specific implementation guidelines and examples.
